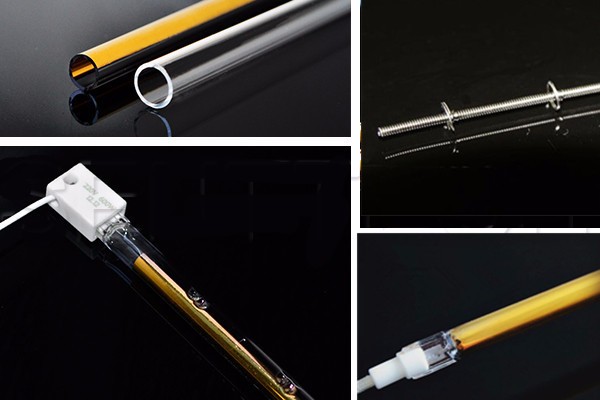

The Infrared Quartz Tubes are designed for a couple of different heating
applications and processes like toasters, room or patio heating or
industrial drying. For this diverse range of applications, various
connectors can be installed at both tube ends. Infrared Quartz Tubes are
available as light or dark emitters and generally designed for horizontal
assembly. Through constructive adoptions it is also possible to operate
them in a tilt or vertical position.
The tungsten filament used in our Medium Wave Quartz Emitters of series YS is the porcupine or star type coil, which can be operated at temperatures up to 1500°C (2732°F). As well as having excellent structural rigidity, this coil is designed to minimize light output and maximize IR emission (Peak wavelength ~1,6 mm) thereby increasing IR radiant efficiency. There are several standard lengths and wattages available.
