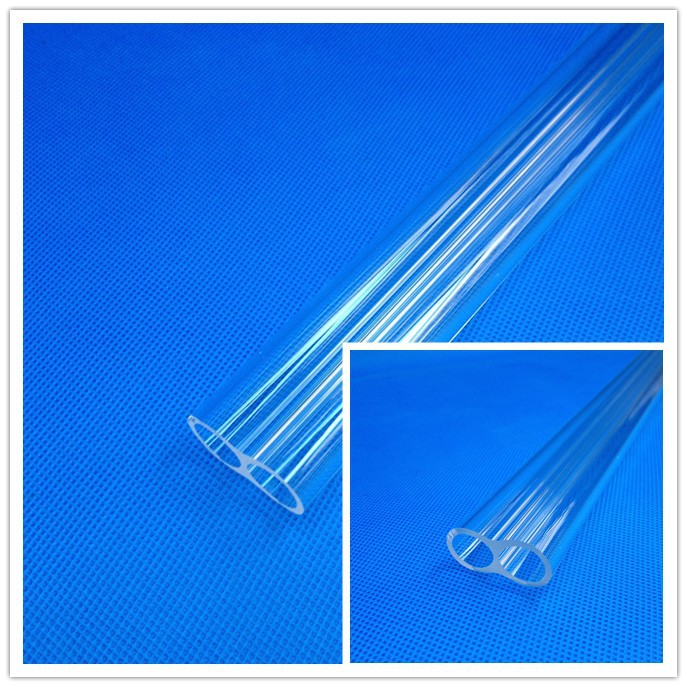

Transparent Twin quartz tube
The transparent quartz tube is obtained through different types of raw materials that include natural or synthetic
quartz sand. Quartz tubes have ultra high purity, good spectral transmission, well controlled dimensions and lower
(OH) Hydroxyl. Some of the other properties include-
Features
- These are highly resistant to thermal shock due to extremely low co-efficient of thermal expansion.
- They have excellent electrical strength that offer stability under temperature variation
|
They are available from 2mm inside diameter to 200mm outside diameter up to 3000mm length.
Applications
NC-100 Chemical element composition (ppm)
Type | A1 | Fe | Ca | Mg | Ti | Mn | B | K | Na | Li | Oh |
NC-100 | 16 | 1.2 | 0.8 | 0.4 | 0.1 | 0.1 | 0.8 | 0.2 | 2.3 | 0.5 | 125 |
Physical Property
Property | Standard | Remarks |
Density | 2.2 x 103 kg/m3 | Thermal stability: cooling from 1100C to20C for three times, no crack |
Hardness | 550KHN100 |
|
Tensile Strength | 4.7 x 101Pa (N/m2) | Heating to 1100C for one hour, No colorchanges. |
Compression strength | > 1.1 x 109 Pa |
|
Coefficient of Thermal Expansion(20C-300C) | 5.5 x 10-7 cm/cmC |
Thermal Conductivity (20C) | 1.4 W/Mc |
Specific Heat (20C) | 660J/kgC |
Softening Point | 1630C |
Annealing Point | 1150C |
