the infrared heat lamp can be customized according to demand
| Model NO. | Voltage | Watt | Quartz
Tube size | Total
Length | Heating Length | Reflector | Lamp
Type | Heraeus
NO. | Lamp
Base |
| H800025 | 55V | 400W | 11*23mm | 115mm | 50mm | Gold | B | 45130750 | TC01 |
| H800027 | 115V | 400W | 11*23mm | 115mm | 50mm | Gold | B |
| TC01 |
| H800054 | 115V | 400W | 11*23mm | 115mm | 50mm | Gold | B |
| TC02 |
| H800002 | 115V | 450W | 11*23mm | 115mm | 50.8mm | Gold | B |
| TC01 |
| H800030 | 115V | 450W | 11*23mm | 72mm | 25mm | Gold | B |
| TC02 |
| H800021 | 115V | 450W | 11*23mm | 72mm | 25.4mm | Gold | B |
| TC01 |
| H800021-NG | 115V | 450W | 11*23mm | 72mm | 25.4mm | Clear | B |
| TC01 |
| H800061 | 115V | 450W | 11*23mm | 83mm | 35mm | Clear | B |
| TC01 |
| H800031 | 115V | 450W | 11*23mm | 115mm | 45mm | Gold | B |
| TC02 |
| H800024 | 115V | 600W | 11*23mm | 145mm | 80mm | Gold | B |
| TC01 |
| H800053 | 115V | 600W | 11*23mm | 145mm | 80mm | Gold | B | 09751713 | TC02 |
| H800020 | 115V | 900W | 11*23mm | 170mm | 115mm | Gold | B |
| TC02 |
| H800007 | 115V | 920W | 11*23mm | 198mm | 140mm | Gold | B |
| TC01 |
| H800060 | 115V | 1000W | 11*23mm | 192mm | 127mm | Gold | B |
| TC01 |
| H800057 | 115V | 1200W | 11*23mm | 218mm | 153mm | Gold | B |
| TC02 |
| H800101 | 120V | 450W | 11*23mm | 115mm | 50.8mm | Gold | B |
| TC01 |
| H800022 | 120V | 700W | 11*23mm | 140mm | 89mm | Gold | B |
| TC01 |
| H800055 | 120V | 800W | 11*23mm | 167mm | 102mm | Gold | B |
| TC02 |
| H800023 | 120V | 1100W | 11*23mm | 195mm | 140mm | Gold | B |
| TC01 |
| H890007 | 230V | 1200W | 11*23mm | 405mm | 340mm | Gold | B | 09751741 | TC01 |
| H890008 | 230V | 1500W | 11*23mm | 300mm | 200mm | Gold | B | 9751751 | TC01 |
| H800019 | 230V | 2350W | 11*23mm | 410mm | 355mm | Gold | B |
| TC01 |
| H890012 | 230V | 3000W | 11*23mm | 650mm | 500mm | Gold | B | 09751761 | TC01 |
| H800065 | 230V | 3000W | 11*23mm | 415mm | 350m | Gold | B |
| TC01 |
| H800016 | 230V | 3500W | 11*23mm | 488mm | 444mm | Gold | B |
| TC01 |
| H890001 | 230V | 4200W | 11*23mm | 850mm | 700mm | Gold | B | 9751765 | TC01 |
| H800006 | 240V | 1250W | 11*23mm | 250mm | 190mm | Gold | B |
|
|
| H890009 | 240V | 1500W | 11*23mm | 255mm | 190mm | Gold | B | 80002677 | TC01 |
| H800012 | 240V | 1500W | 11*23mm | 260mm | 216mm | Gold | B |
| TC01 |
| H800001 | 240V | 1500W | 11*23mm | 268.2mm | 203.2mm | Gold | B |
| TC01 |
| H800005 | 240V | 1650W | 11*23mm | 314mm | 254mm | Gold | B |
| TC01 |
| H800004 | 240V | 2000W | 11*23mm | 363mm | 305mm | Gold | B |
| TC01 |
| H890010 | 240V | 2000W | 11*23mm | 320mm | 255mm | Gold | B | 45132045 | TC01 |
| H890011 | 240V | 2000W | 11*23mm | 370mm | 305mm | Gold | B | 45132827 | TC01 |
| H800015 | 240V | 2800W | 11*23mm | 415mm | 355mm | Gold | B |
| TC01 |
| H800009 | 240V | 3000W | 11*23mm | 540mm | 444mm | Gold | B |
| TC01 |
| H800062 | 240V | 3100W | 11*23mm | 474mm | 394mm | Gold | B |
| TC01 |
| H890013 | 240V | 3400W | 11*23mm | 510mm | 430mm | Gold | B | 80009073 | TC01 |
| H800059 | 240V | 3400W | 11*23mm | 510mm | 430mm | Gold | B |
| TC01 |
| H800014 | 240V | 4000W | 11*23mm | 573mm | 508mm | Gold | B |
| TC01 |
| H890015 | 400V | 3500W | 11*23mm | 1100mm | 1000mm | Gold | B | 86366322 | TC01 |
| H890004 | 400V | 5400W | 11*23mm | 1200mm | 1120mm | Gold | B |
| TC01 |
| H890003 | 400V | 6000W | 11*23mm | 1150mm | 1000mm | Gold | B |
| TC01 |
| H890014 | 415V | 2500W | 11*23mm | 1100mm | 1000mm | Gold | B |
| TC01 |
| H890016 | 415V | 3500W | 11*23mm | 1100mm | 1020mm | Gold | B |
| TC01 |
| H890002 | 450V | 5000W | 11*23mm | 1550mm | 1440mm | Gold | B |
| TC01 |
| H890018 | 480V | 6000W | 11*23mm | 1120mm | 1000mm | Gold | B | 80042199 | TC01 |
| H890019 | 480V | 10000W | 11*23mm | 1860mm | 1780mm | Gold | B | 45121253 | TC01 |
| H890055 | 230v | 500w | 8*18mm | 400 | 300 | Gold | B | 9752439 | TC01 |
| H890056 | 230v | 1000w | 11*23mm | 600 | 500 | Gold | B | 09755167 | TC01 |
| H890057 | 230v | 2000w | 15*33mm | 900 | 800 | Gold | B | 09755054 | TC01 |
| H890058 | 230v | 2500w | 15*33mm | 1100 | 1000 | Gold | B | 09755255 | TC01 |
| H890059 | 230v | 3250w | 15*33mm | 1420 | 1300 | Gold | B | 09753187 | TC01 |
| H890060 | 230v | 3750w | 15*33mm | 1600 | 1500 | Gold | B | 09754585 | TC01 |
| H890061 | 380v | 4800w | 15*33mm | 2135 | 2035 | Gold | B |
| TC01 |

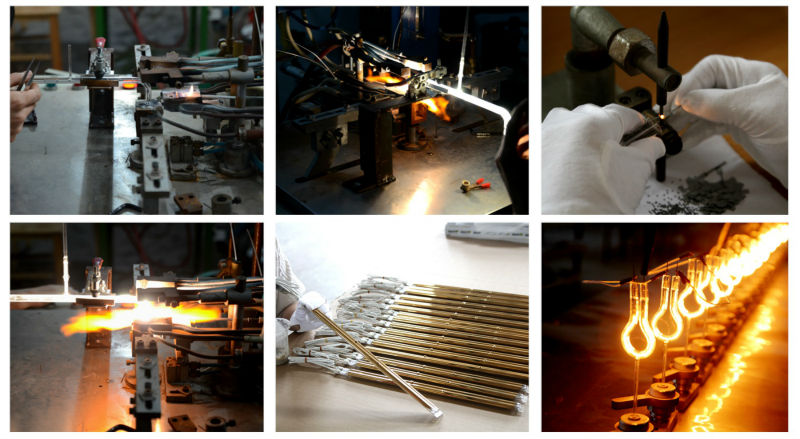

we are a factory which specialized in manufacturing infrared heat lamps for 9 years ,the high quality product with reasonable price will provide to you
