Technical brochures |
SIO2 : | 99.9 % |
Tolerance: | ±0.1mm |
Density : | 2.2(g/cm3) |
Degree of hardness moh' scale : | 6.6 |
Melting point: | 1732°C |
Working temperature : | 1100°C |
Max temperature can reach in a short time : | 1450°C |
Acid tolerance: | 30 times than Ceramics ,150 times than Stainless steel |
Visible light transmittance : | above 93% |
UV spectral region transmittance: | 80% |
Resistance value : | 10000 times than ordinary glass |
Annealing point: | 1180°C |
softening point: | 1630°C |
Strain point: | 1100°C |

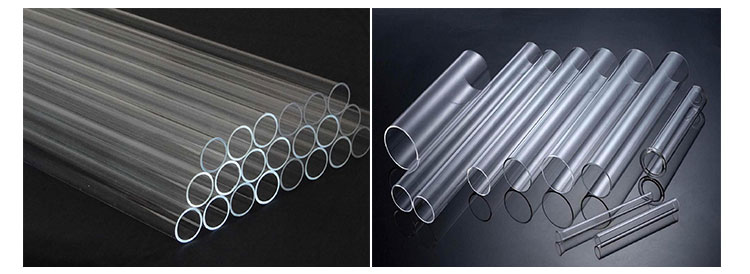

1.high temperature resistant, High pressure cut quartz tube for tube furnace can work under 1200°C continuously,and in short time can even work under 1450°C,
its softening temperature is 1650°C,and the melting temperature is 1750-1800°C.
2.Corrosion resistant, Except hydrofluoric acid, quartz tube do not react with any
acid and base except hydrofluoric acid.the stability is 30 tims of the ceramic,and 150 times of stainless steel .
3.Excellent thermal shock stability
4.High transmission to 85%
5.Electric insulation ,it is 10000 times of usual glass.
